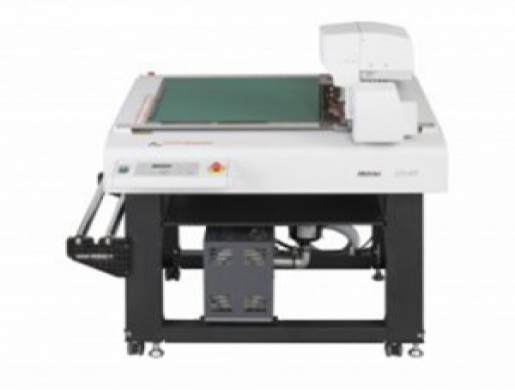

MIMAKI CFL-605RT FLATBED CUT WITH RECIP 20×24

  • Share on social media

Item CFL-605RT
Driving method X/Y/Z/Θ 4 axes: DC servo motor
Material holding method Air suctioning by a vacuum unit
Maximum media 630mm x 530mm
Cutting area 610mm x 510mm
Maximum cutting speed XY: 423 mm/s (45° angle direction) Z: 30mm/s
Maximum cutting speed XY: 423 mm/s (45° angle direction) Z: 30mm/s
Maximum downforce pressure Eccentric cutter: 1,000g / Tangential cutter and creasing roller 1,500g
Maximum media thickness Reciprocating cutter: 10mm / Tangential cutter: 2mm
Maximum media weight 20kg (this is not one-point-load strength)
Static accuracy Repeatability 0.2 mm or lower (Material shrinkage is ignored)
Distance accuracy Moving distance × ±0.2% or lower or ±0.1 mm or lower Larger value is applied
Original repetition accuracy 0.1 mm or lower
A Unit Attachable tools: Eccentric cutter, pen
B Unit Attachable tools: Reciprocating / Tangential cutter, Creasing roller
Command MGL-ll c3
Interface USB2.0, RS-232C, Ethernet
Power specification Single phase AC100-120V / 200-240V, 50/60Hz
Command MGL-IIc3
Interface USB 2.0 (High Speed), RS-232C, Ethernet
Power specification Single phase AC 100–120 V/200–240 V, 50/60 Hz
Noise level 70db or lower (The maximum level is generated while the reciprocating cutter or a vacuum blower is used)
Power consumption 500 W
Dimensions (W × D × H) 1,320mm x 1,045mm x 1,100mm
Weight 109kg or lower (Blower: 20kg, included)
Warranty period 1 year
Certifications VCCI class A, CE marking (Machinery directive, RoHS directive),
CB, UL 60950-1, REACH, FCC class A
