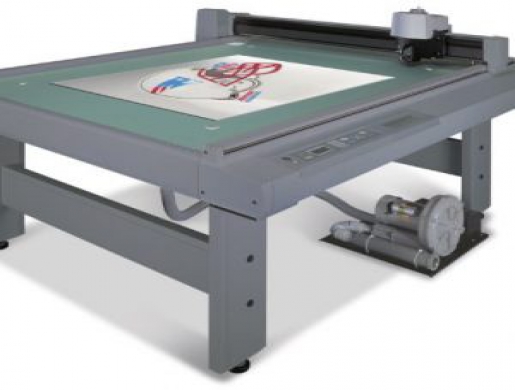

Mimaki CF2-1215

  • Share on social media

CF2-0912** CF2-1215** CF2-1218**
Effective
plotting
area X
(Sensor model) 1,170mm(46.1″) 1,470mm(57.9″) 1,770mm(69.7″)
X
(No sensor model) 1,200mm(47.2″) 1,500mm(59.1″) 1,800mm(70.9″)
Y 900mm(35.4″) 1,200mm(47.2″)
Motorization X,Y,Z,θ 4 axes DC software servo
Maximum plotting speed 50cm(19.7″) / s
Maximum acceleration 0.5G
Mechanical resolution X:0.00234mm(0.00009″) Y:0.003125mm(0.0001″) θ:0.05625
Command resolution 0.025mm(0.001″) / 0.01mm(0.0004″)
(changeable from operation panel)
Static
accuracy *1 Repetition accuracy ±0.1mm(0.004″)
Distance accuracy ±0.1mm(0.004″) or ±0.1% whichever is greater
Origin repetition accuracy ±0.1mm(0.004″)
Maximum thickness of set work T / TD:25mm(1″) RT / RC:20mm(0.8″)
Work fixation Air suction by a blower
Receiver buffer size 1MB
Command MGL-IIc3(Support MGL-IIc) *2
Interface RS-232C
Dimension Width 1,760mm(69.3″)
or less 2060mm(81.1″)
or less 2360mm(92.9″)
or less
Depth 1,600mm(63.0″)
or less 1900mm(74.8″) or less
Height 1,100mm(43.3″) or less
Weight 140kg(308lbs) 165kg(364lbs) 180kg(397lbs)
Operation environment Temperaturet : 5-40ºC
Humidityt : 35-75%(Rh)No condensation
Power requirement Main Unitt : 50/60Hz AC100/120/220/240V(tap changing)
Blowert : Stated separately
Power consumption Main Unit : 300VA Blowert : Stated separately

Town / City / village:Nairobi - Kenya
Creation Date07/09/2021
Ad number:19024
Category
Keywords:printer,machine,canon

Send a message to user


  Other Ads from this advertiser

 Our recommendations and advices
In general we believe that all our announcer and services providers are genuine. But In order to avoid been fooled and for your own personal safety, always meet the seller in a public places or at least not in isolated places. It's probably a good idea if you bring a friend as well to witness the transaction

Other Ads from this advertiser More similar ads

MIMAKI CFL-605RT FLATBED CUT WITH RECIP 20×24
MIMAKI CFL-605RT FLATBED CUT WITH RECIP 20×24

Item CFL-605RT Driving method X/Y/Z/Θ 4 axes: DC servo motor Material holding method Air suctioning by a vacuum unit Maximum media 630mm x 530mm Cutting area 610mm x 510mm Maximum cutting speed XY: 423 mm/s (45° angle direction) Z: 30mm/s Maximum cutting speed XY: 423 mm/s (45° angle direction) Z: 30mm/s Maximum downforce pressure Eccentric cutter: 1,000g / Tangential cutter and creasing roller 1,500g Maximum media thickness Reciprocating cutter: 10mm / Tangential cutter: 2mm Maximum media weight 20kg (this is not one-point-load strength) Static accuracy Repeatability 0.2 mm or lower (Material shrinkage is ignored) Distance accuracy Moving distance × ±0.2% or lower or ±0.1 mm or lower Larger value is applied Original repetition accuracy 0.1 mm or lower A Unit Attachable tools: Eccentric cutter, pen B Unit Attachable tools: Reciprocating / Tangential cutter, Creasing roller Command MGL-ll c3 Interface USB2.0, RS-232C, Ethernet Power specification Single phase AC100-120V / 200-240V, 50/60Hz Command MGL-IIc3 Interface USB 2.0 (High Speed), RS-232C, Ethernet Power specification Single phase AC 100–120 V/200–240 V, 50/60 Hz Noise level 70db or lower (The maximum level is generated while the reciprocating cutter or a vacuum blower is used) Power consumption 500 W Dimensions (W × D × H) 1,320mm x 1,045mm x 1,100mm Weight 109kg or lower (Blower: 20kg, included) Warranty period 1 year Certifications VCCI class A, CE marking (Machinery directive, RoHS directive), CB, UL 60950-1, REACH, FCC class A...
