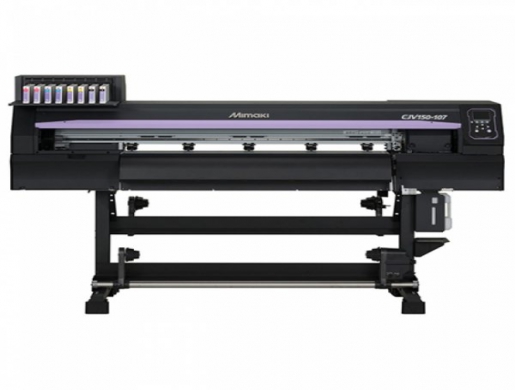

MIMAKI CJV 150-107 42 PRINT/CUT

  • Share on social media

Specifications :

Print System On-demand piezo, one print head per color 8 channels for a variety of
ink configurations
Maximum print width CJV150-75: 31.4 inches (800 mm)
CJV150-107: 42.9 inches (1090 mm)
CJV150-130: 53.5 inches (1361 mm)
CJV150-160: 63.3 inches (1610 mm)
Print resolution 360, 540, 720, 1,080, 1,440 dpi
Ink Type Mimaki SS21 Eco-Solvent: C, M, Y, K, Lc, Lm, Lk, Or, W, Si
Mimaki ES3 Eco-Solvent: C, M, Y, K, Lc, Lm, W
Mimaki Sb54 Dye Sublimation: Bl, M, Y, K, Lbl, Lm
Ink Capacity 440ml cartridges available for most colors
220ml cartridges only for Silver and White ink
Optional: 2-liter bulk ink system standard for most colors
Maximum media width CJV150-75: 31.8 inches (810 mm)
CJV150-107: 43.1 inches (1100 mm)
CJV150-130: 53.9 inches (1371 mm)
CJV150-160: 63.7 inches (1620 mm)
Max roll weight 88 lbs. (40 kg)
Media thickness 1.0 mm
Operational environment Temp: 59˚ – 86˚ F (15˚ – 30˚ C)
35-65% RH (non-condensing)
Connectivity USB 2.0
Power supply Single-phase AC 100-120V (AC 220-240V) x2
Dimensions (W × D × H) CJV150-75: 77 x 28 x 55 inches (195 x 71 x 140 cm)
CJV150-107: 89 x 28 x 55 inches (226 x 71 x 140 cm)
CJV150-130: 99 x 28 x 55 inches (251 x 71 x 140 cm)
CJV150-160: 109 x 28 x 55 inches (277 x 71 x 140 cm)
Weight CJV150-75: 278 lbs. (126 kg)
CJV150-107: 313 lbs. (142 kg)
CJV150-130: 346 lbs. (157 kg)
CJV150-160: 370 lbs. (168 kg)

Town / City / village:Nairobi - Kenya
Creation Date13/08/2021
Ad number:18034
